Research Summary

Role of Prepreg Interlayer Permeability on Void Reduction During Oven Vacuum Bag Processing of Thick Thermoplastic Composites

Authors: Danning Zhang (Ph.D MSEG), John W. Gillespie, Jr

Research Goal

• Investigate the interlayer permeability properties of prepreg stack
• Investigate the feasibility of manufacturing thick TP laminates through OVB processing
• Investigate the volatile removal based on diffusion and interlayer permeability mechanisms

Thermoplastic Composites and Oven Vacuum Bag (OVB) Processing

• High performance thermoplastic composites (TPCs) as primary structural materials
• OVB processing - potential cost effective alternative of autoclave
• Void dynamics and consolidation mechanisms are not fully understood!

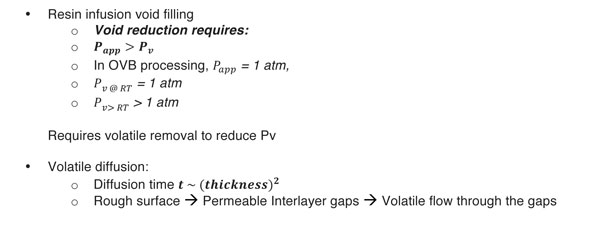

Void Volatile Removal Governs Void Reduction

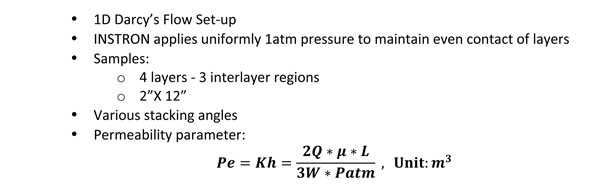

In-Plane Air Permeability of TP Prepreg Stacks - Experimental Set-Up

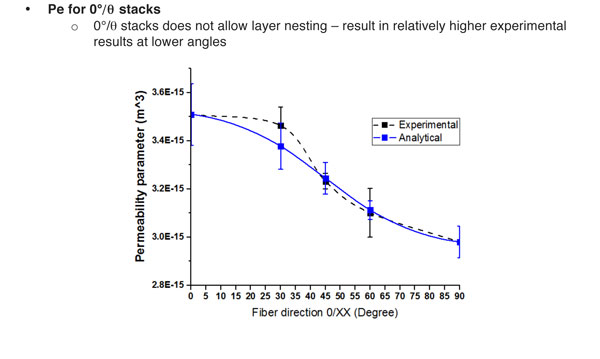

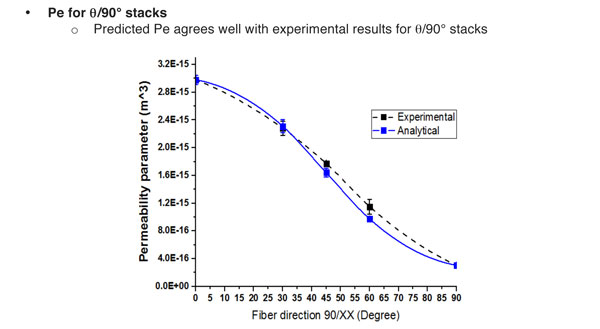

Directionally Dependent In-Plane Air Permeability

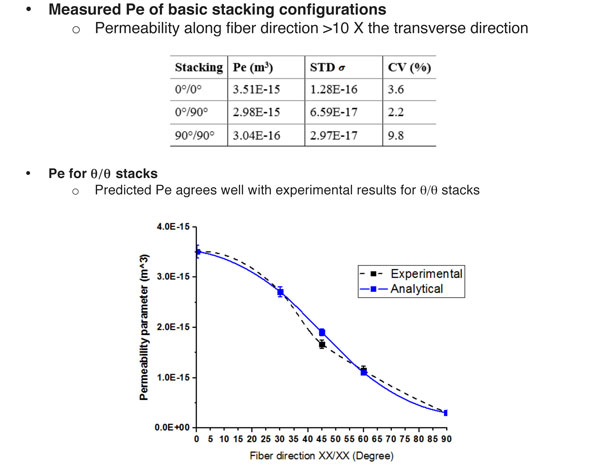

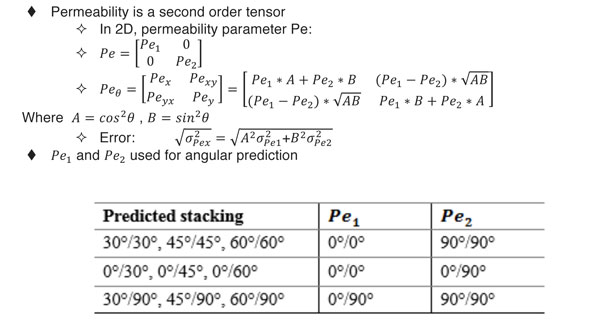

Results of In-plane Air Permeability Parameters

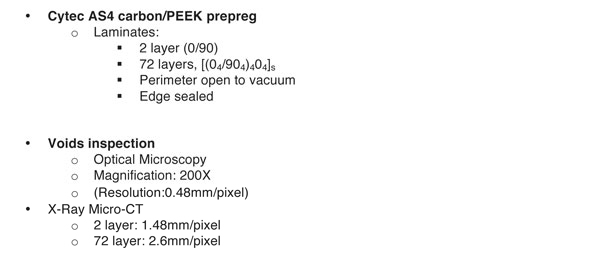

Consolidation Experiments for Thick and Thin Laminates

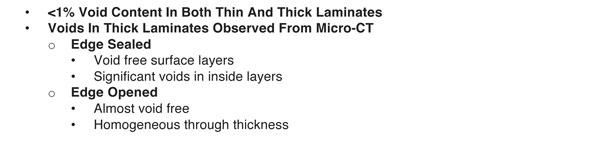

Void Results

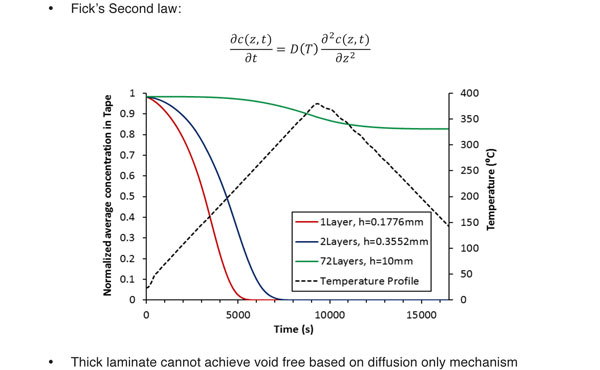

Non-Isothermal Diffusion with Real Temperature Profile

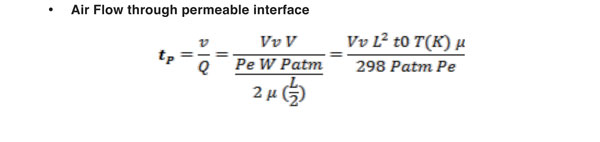

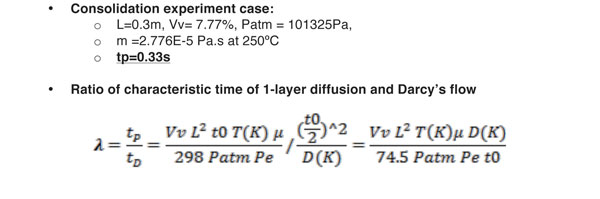

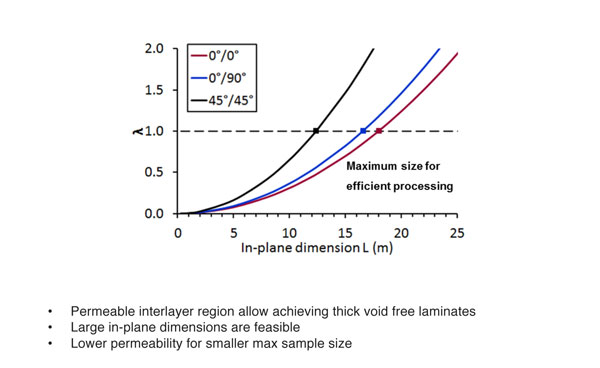

Characteristic Time

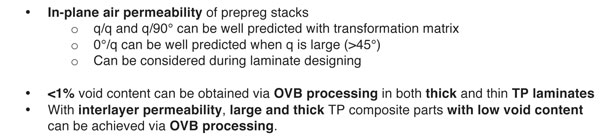

Summary

Acknowledgements

• Faculty Advisor: Prof. J. W. Gillespie, Jr.
• Committee Members: Prof. Suresh. G. Advani, Prof. Dirk. Heider, Prof. Michael Mackay
• CCM Researchers and Technician:
Pavel Simacek, John Tierney, John Thiravong
• Funding: EADS
