Robust Process Design for Liquid Composite Molding (LCM)

Authors: J. Wang (PhDME), Dr. P. Simacek, and Dr. S. G. Advani

Background: Design and Manufacturing of Composite Material Structures

• Composite processing simulations combined with stress analysis lead to robust structural design and process design
• Liquid Composite Molding (LCM) processes: Thermoset resin injected into the mold filled with fiber preform under pressure difference

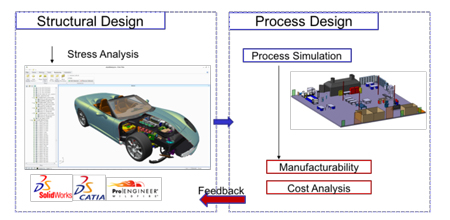

Integration Between Process and Functional Design

• In LCM, processing simulations are necessary to virtually execute the manufacturing steps to verify the design.
• Interaction between composite structural design and processing design in LCM:
- Simulation results reflect part manufacturability and cost;
- Optimized processing parameters for LCM;
- Feedback to the designer for design iteration.

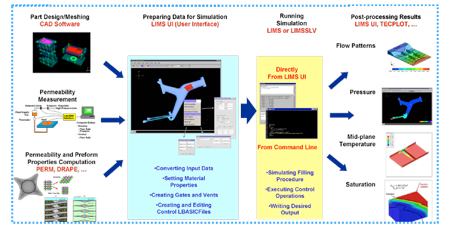

Composite Process Manufacturing Simulation Tool: LIMS

• LIMS: Liquid Composite Molding Simulation
• LCM mold filling simulation tool to predict flow pattern during resin impregnation step
- Input: FE mesh, Preform permeability, and resin inlet
- Output: Flow pattern, pressure, temperature field

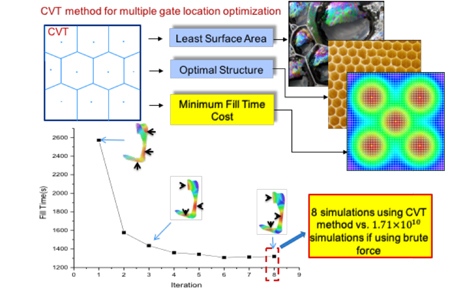

Optimal Gate/Vent design for RTM

• Design Gate/Vent schemes to fill the mold under fill time restrictions and free of voids in Resin Transfer Molding Processes
• Develop algorithms to search for optimal gate/vent design

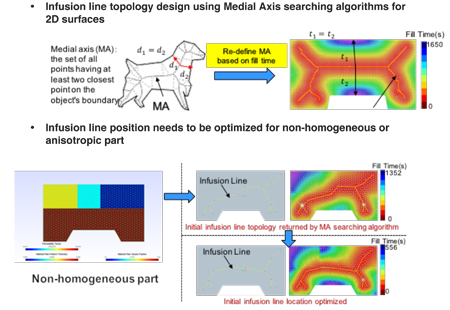

Optimal Infusion Line Design for VARTM

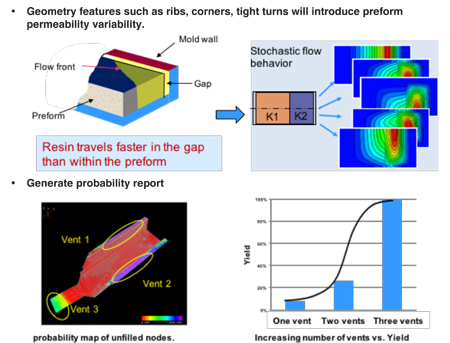

Robust Process Design Accounting for Material Variability

Summary

• Coupling between composite part functional design and process design can reduce prototype development cost and time
• Integrating LCM simulation tools and optimization modules into a CAD environment seamlessly can provide process information to the designer in real time
• Accounting for material variability to achieve robust process design
