Modeling Approach to Predict Co-cured Sandwich Panel Quality

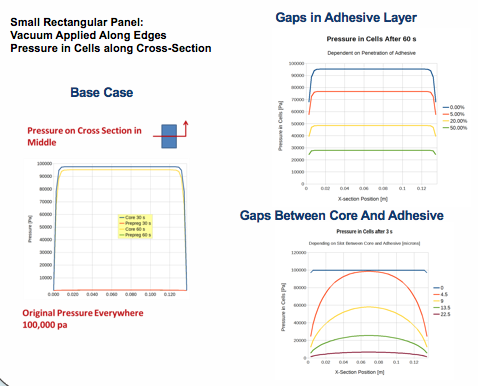

Predicted Pressure Within Core

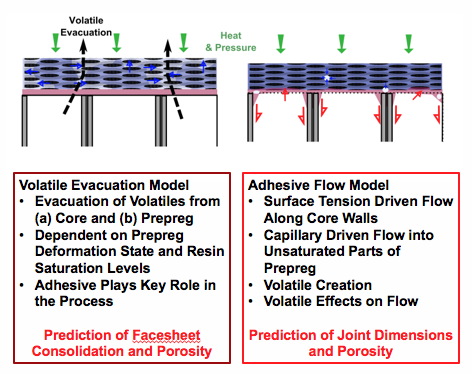

Volatile Transport: Meso-scale Vs. Macro-scale

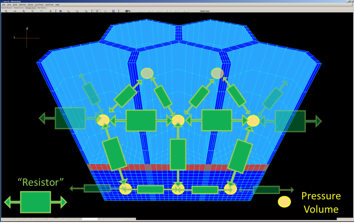

Relation (“Scaling”) Between Meso-scale And Network Model

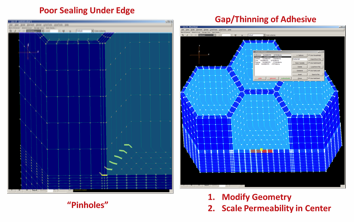

Layout Variations In Meso-scale Model

Summary

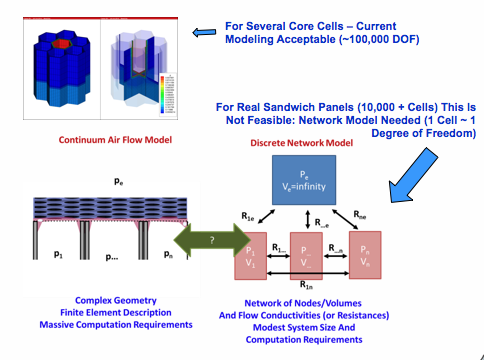

• Network Macro-Scale Model for Air Evacuation was developed

• It Provides Pressure and Volume in Each Cell As a Function of Time

• Conductivity Values in Macro-Scale Model Were Related to Material Properties by Mesoscale Model

• Micro-Scale Model Can be Coupled with Mesoscale Network. Predictions are sensitive to changes at the microscale level.

Future Work

• Integration with Models for Adhesive Flow and Volatile Generation
• Adaptation to Different Boundary Conditions
• Study of the Impact of Localized Variations
• Experimental Verification

Acknowledgements

This work is supported by NASA
through “A Physics-Based Process Model for the Co-Cure of Honeycomb Core Sandwich Structures” program.
