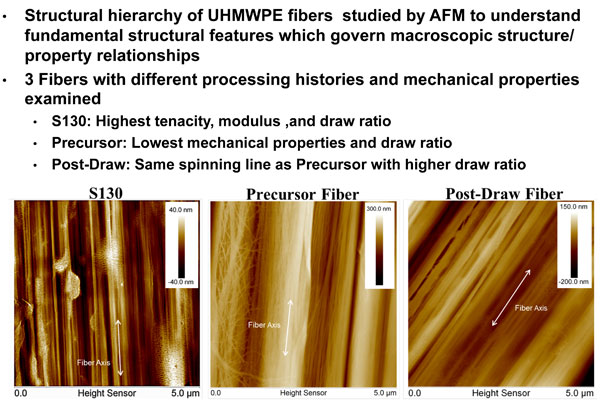

Sub-Filament Mapping Across Length Scales

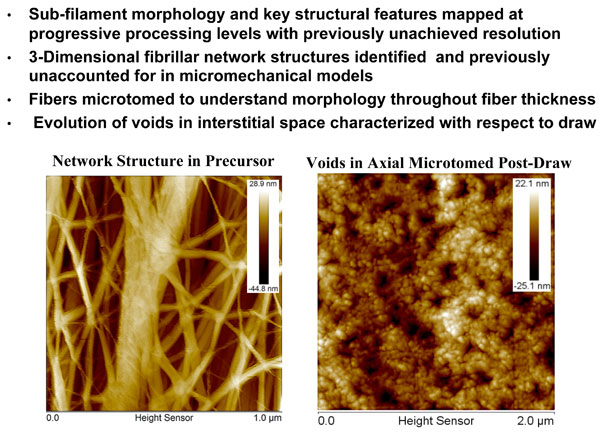

Key Morphological Features

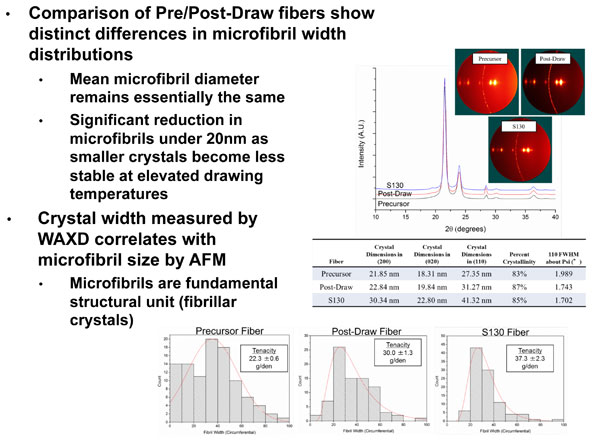

Parallels in Crystal Structure and Fibril Morphology

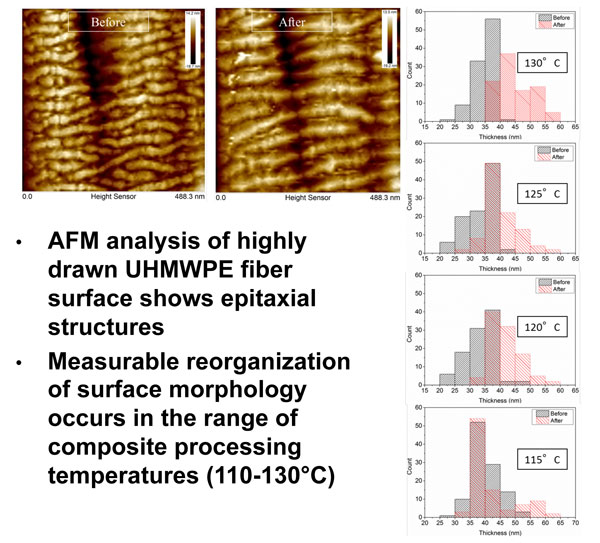

Surface Morphology

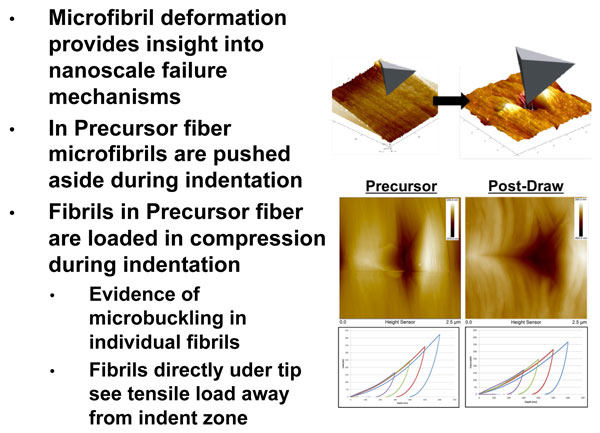

Nanoindentation

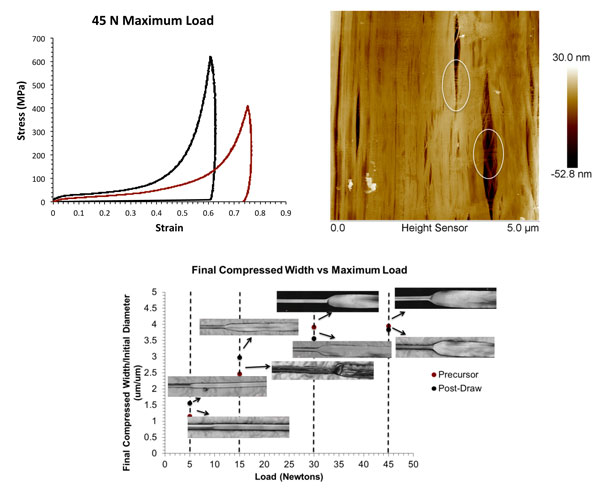

Transverse Compression

Conclusions

• The sub-filament architecture has been mapped out through AFM and WAXD
• This information is now being used to better understand structure-property relationships at the meso/nanoscale
