Research Summary

Modeling the Microdroplet Test Method

Authors: Subramani Sockalingam, John W. Gillespie, Jr., and Michael Keefe

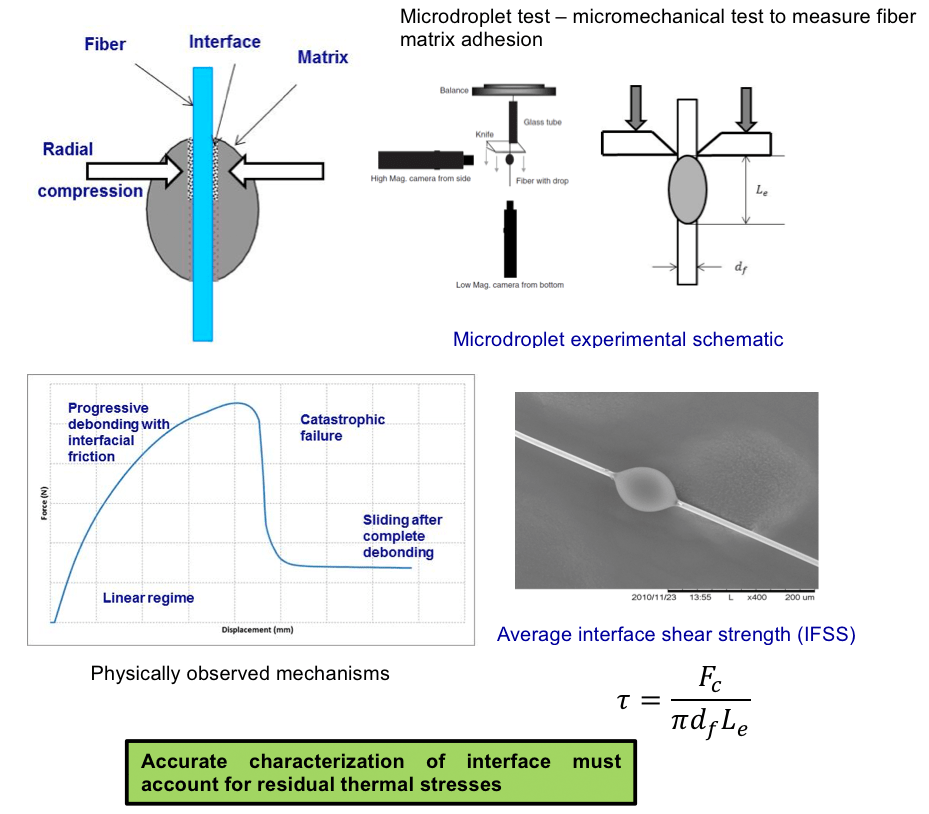

MICRODROPLET EXPERIMENTAL METHOD

• Fiber matrix interface – potential source of energy absorbing mechanism
• Residual stresses due to CTE mismatch result in radial compression leading to enhanced energy absorption

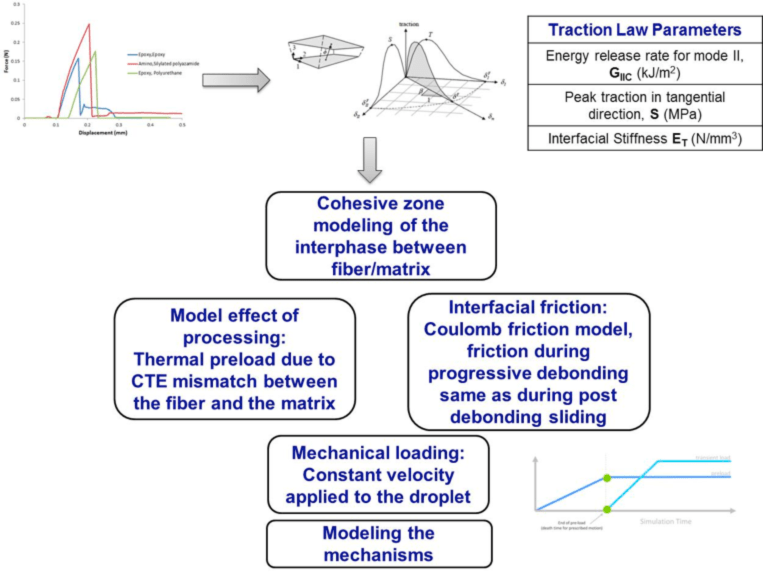

MICRODROPLET TEST – MODELING APPROACH

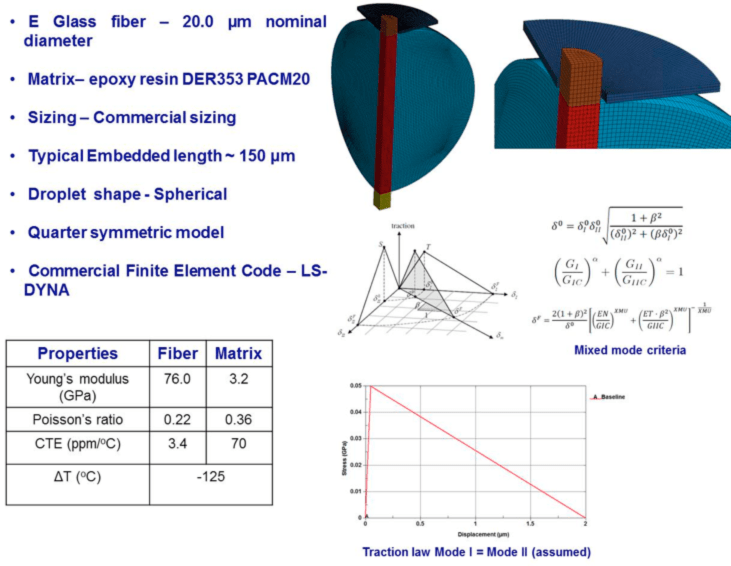

MICRODROPLET TEST – MODELING

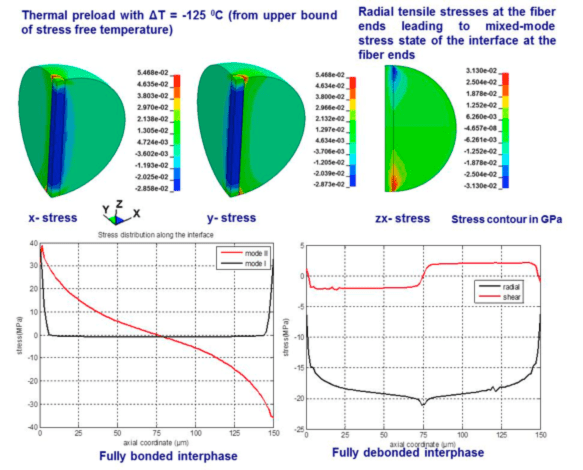

THERMAL RESIDUAL STRESSES AT ROOM TEMPERATURE

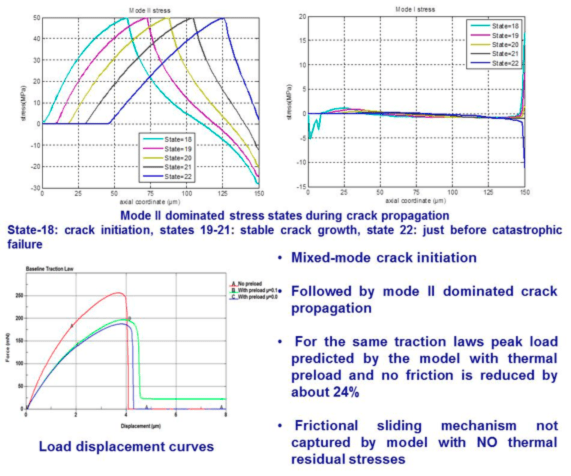

PROGRESSIVE DEBONDING

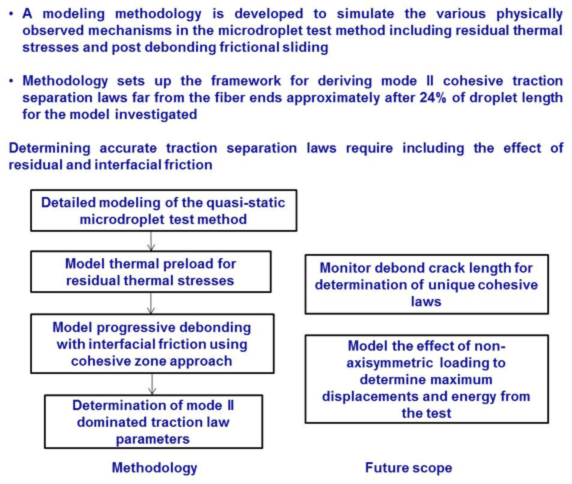

SUMMARY AND FUTURE SCOPE

ACKNOWLEDGEMENTS

Research was sponsored by the Army Research Laboratory and was accomplished under Cooperative Agreement Number W911NF-12-2-022. The views and conclusions contained in this document are those of the authors and should not be interpreted as representing the official policies, either expressed or implied, of the Army Research Laboratory or the U.S. Government. The U.S. Government is authorized to reproduce and distribute reprints for Government purposes notwithstanding any copyright notation herein.
