Dynamic Effects of a Single Fiber Break in Unidirectional Glass Fiber-Reinforced Composites

Authors: Raja Ganesh (Ph.D.M.E.), Subramani Sockalingam (Ph.D.M.E. 16), Bazle Z. (Gama) Haque, and John W. Gillespie, Jr

Introduction

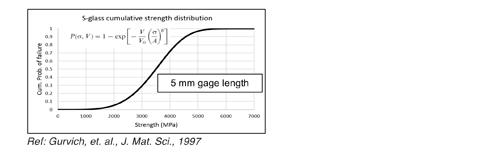

• S-2 Glass fibers exhibit a probabilistic distribution of strength which can be fitted into a 2-parameter Weibull distribution.
• This depends on the size and spatial distribution of critical defects in the fiber

State-of-the-Art Modeling

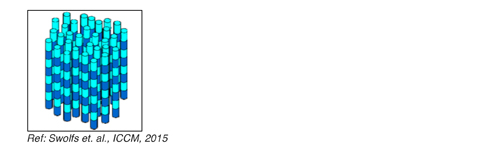

• Monte-Carlo simulations based on statistical fiber strength distribution.
• Strength values assigned randomly to fiber elements
• Not based on physical defects in fiber
• When fiber break occurs, stress concentration factors are applied to neighboring fiber elements
• High mesh dependence
• Stress concentration profiles determined from static FE simulations/shear lag theory
• Multiple breaks accounted for by linear superposition of stress concentrations
• Do not consider the dynamic effects of fiber break

Research Objectives

• Predict the HSR tensile failure of unidirectional composites while accounting for micro-mechanical
damage mechanisms
• Tailor interface and matrix to enhance tensile properties and energy absorption

Our Modeling Approach

• Model the fiber break as a dynamic process.

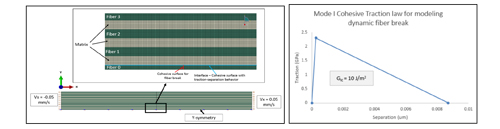

• Dynamic fiber fracture using cohesive surfaces
• Mode I fracture initiated based on maximum stress criterion
• Interface modeled using ‘zero-thickness’ cohesive surfaces

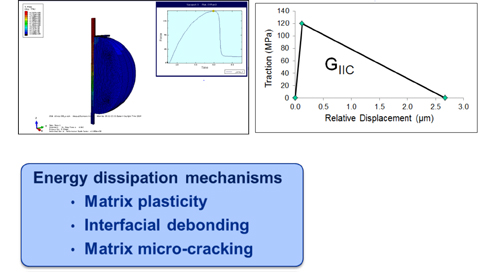

• Traction-separation behavior determined from micro-droplet experiments

Dynamic Effects of a Fiber Break

• Even under static tensile loading, fiber break is a dynamic event!
• Local strain rates in the order of 10 6/s

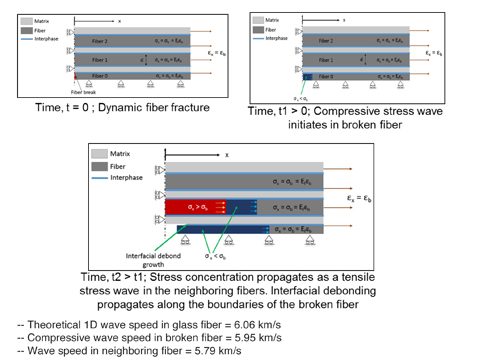

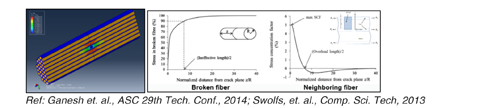

Dynamic Progression of Events After Fiber Fracture

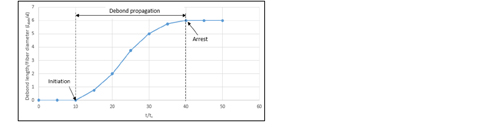

Dynamic Interfacial Debonding

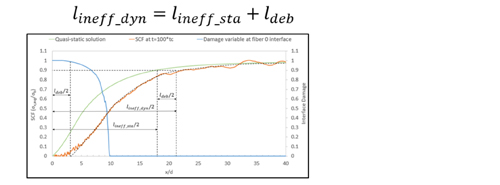

• Ineffective length in dynamic solution increases by the debond length

Qualitative Comparison with Experiments

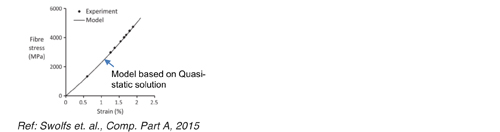

• Quasi-static solution with pre-broken fiber over-predicted strain to failure in the composite

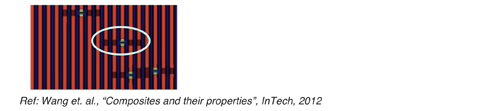

• Formation of large clusters during single strain increment observed in experiments
• More gradual development of clusters predicted by Quasi-static FE model

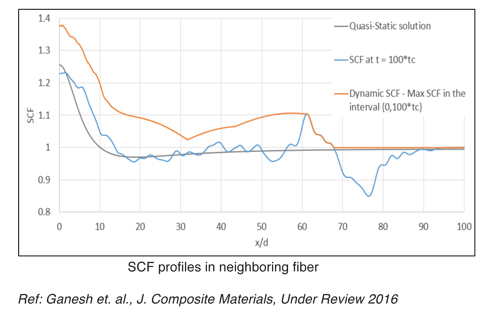

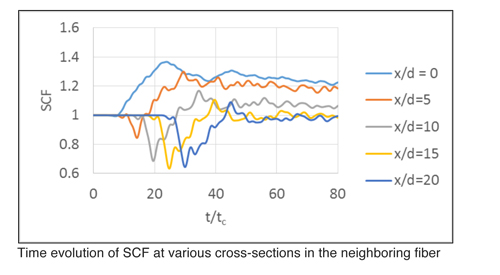

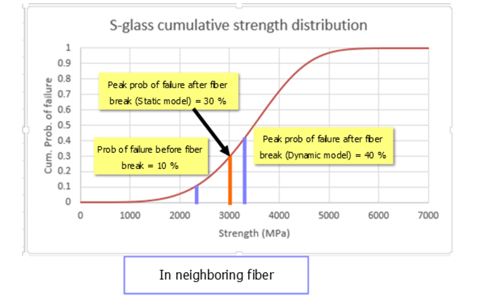

• Increase in probability of failure in the neighboring fiber due to dynamic effects

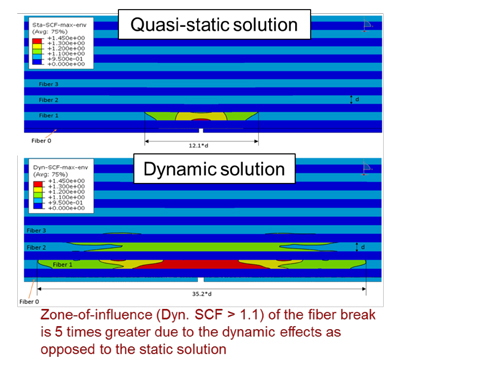

• Zone of influence is 5-6 times larger in dynamic solution
• Significant proportion (30% of all clusters) of non-co-planar clusters observed experimentally

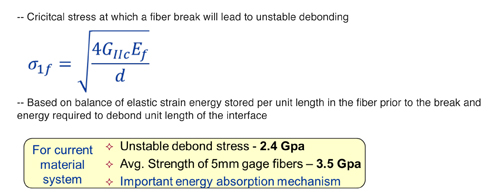

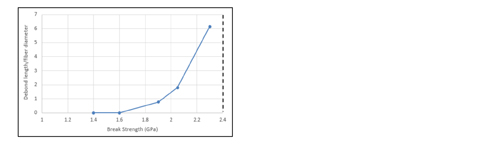

• Dynamic unstable debonding of the interface at break stresses > 2.4 Gpa

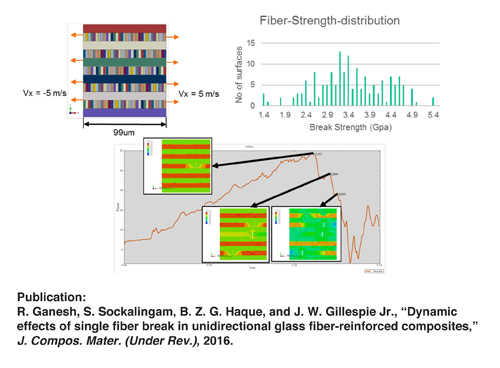

• Axial splitting observed in composite tensile tests

Path Forward

• Dynamic model with fracture planes representing characteristic defect distributions in fiber
