U.S. Department of Transportation National Highway Traffic Safety Administration NHTSA Releases High Performance Computing Studies Report

Authors:
D. Heider, S. Yarlagadda, J.J. Tierney, B. Gama, N. Shevchenko, A. Yiournas, J.W. Gillespie Jr.,
Center for Composite Materials, University of Delaware
A. Campbell, L. Keuthage, D. Rinehardt,
BMW Group
D. Fulk, R. Myers,
National Center for Manufacturing Sciences

UD-CCM in partnership with NCMS, NHTSA and BMW investigated thermoplastic carbon fiber reinforced materials for vehicle sideframe structures. The proposed B-pillar was designed to meet structural and crash safety requirements (e.g., FMVSS 214 barrier) using thermoplastic composites which offers significant advantages (e.g., recycling, joining, >60% elongation leading to improved ductility and energy absorption) compared to thermoset with the potential for improved crash performance. Novel side-impact crash concepts maximizing crash performance have been developed and commercial available thermoplastic materials were characterized to define appropriate material models and to evaluate energy absorption mechanisms. Predictive engineering at all levels, from coupon to sub-element to full-scale, guided the material down-selection. The same CAE tools simulate full vehicle to component and test setup behavior and were used to optimize manufacturability and structural/ crash performance. Sub-components and B-pillars have been fabricated using the stamp forming and infusion processes allowing scalability with the potential to meet automotive production rates in the future. UD-CCM’s large drop tower was used to validate the predictive engineering tools and crash performance of the proposed B-pillars under realistic side-impact crash conditions.
The B-pillar design was spatially optimized for energy absorption (ductility), stiffness, and strength while maintaining part producibility and vehicle integration. BMW established B-pillar performance metrics derived from full-vehicle crash simulations and other design and integration requirements. UD-CCM provided full range of capabilities in materials selection and evaluation, composite design, analysis and crash simulations,

    Click here to see full 2017 Report

process development and manufacturing (tooling, part production, trimming), full-scale pillar assembly and high-energy impact testing. This project has demonstrated design, materials, manufacturing and joining methods with continuous carbon fiber thermoplastics, at TRL 4-7 to meet automotive industry and government safety specifications.



Key achievements from this project include:

  • Successful fabrication and manufacture of an all thermoplastic composite B-pillar that is 60% lighter than the existing metallic design while meeting project requirements for NHTSA FMVSS 214 side-impact crash.
  • State-of-the-art CAE tools were evaluated (with internally developed data translation) simulating full vehicle to component impact (Dassault Systemes CATIA, Altair HyperWorks & LSTC LS-DYNA).
  • Innovative production methods were developed and demonstrated for this multi-material part that included infusion and thermoforming tailored blanks with the potential to meet 2 minute cycle times.
  • Adhesive bonding methods were developed and automated for dissimilar thermoplastics and steel interfaces
  • Automated trimming of the thermoplastic components was developed and demonstrated without damage to the composite structure.

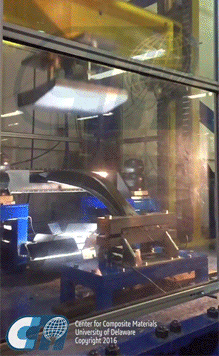

  • A test fixture was designed and integrated into UD-CCM’s high-energy impact tower simulating the crash behavior during side-impact crash without using a full vehicle structure
  • Multiple full-scale B-pillar assemblies (incorporating steel roof and frame rail) were successfully impact tested under 100% equivalent energy of FMVSS 214 Top STORY (Continued) University of Delaware Center for Composite Materials COMPOSITES UPDATE September 2016
  • The composite B-pillars response in the vehicle sub-component configuration satisfies all of the intrusion safety requirements.
  • All composite B-pillars exhibited rebound and post-impact structural integrity in terms of fully supporting the impactor dead weight of 568.80 kg.
  • The impact test was simulated and compared to the experimental data (deflection, load, and others) validating the predictive engineering approach.
  • Continuous carbon fiber thermoplastic composites are shown to exhibit improved ductility and energy absorption.

This effort has demonstrated design, materials, manufacturing and joining methods with continuous carbon fiber thermoplastics, at TRL 4-7 to meet automotive industry and government safety specifications.
